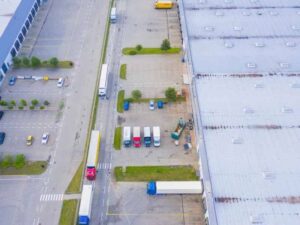

Planning New Loading Areas With an Industrial Aerial Survey

A loading area has to work for the biggest truck that will ever use it. If the space is too tight or the slope is wrong, drivers struggle, trailers scrape, and freight slows down. An aerial survey gives you an accurate map of the site before you draw a single dock. It shows the real ground, not a guess, so your layout fits what’s actually there.

Planning loading areas from an old plan or a rough sketch invites costly surprises. A few feet of missed grade or an unmarked utility can force a redesign after grading starts. This article covers what an industrial aerial survey should capture, how the data guides truck movement, why grades matter, and how to turn the survey into a plan you can build.

What Should an Industrial Aerial Survey Capture?

An industrial aerial survey should capture an accurate picture of the whole site surface and its features. An aerial survey uses a drone or aircraft to collect images and measurements from above. The result is a topographic map and point data that show the shape of the land and what sits on it. For a loading area, that base has to be exact.

A strong survey for this kind of project records:

• Existing grades and contour lines across the site
• Spot elevations at docks, drives, and building edges
• Pavement, curbs, and existing dock or apron areas
• Visible utilities, drainage inlets, and detention areas
• Access points, curb cuts, and the adjacent roads
• Fences, walls, stockpiles, and nearby structures

Paired with a boundary survey, the aerial data also ties features to your property lines. That combination tells you how much usable space you have and where it starts and stops. You can then plan around the true limits of the site.

How Survey Data Supports Truck Circulation Planning

Aerial survey data supports truck circulation planning by giving measured space to design real movement paths. Trucks need room to enter, turn, back into a dock, and leave without conflict. With accurate distances, you can lay out drive aisles, turning paths, and dock approaches that fit the vehicles you serve. Guessing at those dimensions is where tight, unsafe corners come from.

The largest trucks need a wide turning path and a deep apron in front of the docks. The survey shows whether the site has that room or whether the layout needs a one-way loop or a staging area. It also shows how new drives will tie into the existing entrance and the public road. Getting circulation right early keeps trucks moving and keeps the yard safe.

Why Grades Matter Around New Loading Areas

Grades matter around loading areas because slope affects safety, drainage, and how well a dock works. The apron in front of a dock should be close to flat so a parked trailer doesn’t roll or bind against the leveler. At the same time, the pavement has to shed water away from the building and the dock pit. An aerial survey gives the grade data needed to balance both.

Too much slope near a dock is a real hazard. A trailer on a steep apron is harder to load and can shift under a forklift. Water that drains toward a dock pit can pool and freeze in cold months. Design standards for slopes and drainage can vary by municipality, county, and project, so confirm the local rules before you set your grades.

Which Existing Features Could Restrict the Loading Layout?

Several existing features can restrict where you place docks and drives. An aerial survey flags them early, while the plan is still easy to change. Catching a conflict on the map costs far less than moving a dock after construction starts. That is one of the main reasons to survey first.

Features that often limit a loading layout include:

• Utility lines and easements that block building or paving
• Overhead power lines with height limits over drive areas
• Existing structures, retaining walls, and steep banks
• Drainage channels, detention ponds, and low wet spots
• Property lines and required setbacks from the edge
• Floodplain areas or soft soils that need special design

Some of these show up in the aerial data, and others come from title records and geotechnical work. A good plan checks all of them together. That way the layout respects the site’s real limits from the start.

Turning Aerial Survey Data Into a Buildable Site Plan

Aerial survey data becomes a buildable site plan when an engineer uses it as the base for design. The survey gives the accurate ground model, and the engineer draws grading, drives, docks, and drainage on top of it. From there the plan moves through permitting and into construction. Each step relies on the same trusted survey base.

A typical path looks like this:

• The surveyor delivers a topographic base map from the aerial survey
• The engineer designs the loading area, grades, and drainage
• The plan goes through local permitting and review
• A survey crew stakes the design for the contractor to build
• An as-built survey records what was actually installed

Scope for this work can vary by lender, municipality, county, and project size. If your permit or build schedule depends on the survey, order it early and confirm the scope with your surveyor and engineer. Starting with solid data keeps the whole project on track.

Frequently Asked Questions

What is an aerial survey?

An aerial survey collects images and measurements of a site from above, using a drone or aircraft. The data is turned into a topographic map and point cloud that show the shape of the land. Surveyors use it to map grades, features, and large areas quickly. It gives designers an accurate base to plan from.

Is an aerial survey accurate enough for site design?

Yes, when it’s done by a licensed crew with proper ground control. Ground control points let the surveyor tie the aerial data to real elevations. That produces the accuracy engineers need for grading and drainage design. Always confirm the accuracy and scope you need for your project up front.

Do I still need a boundary survey if I have an aerial survey?

Often yes, because the two answer different questions. An aerial survey maps the surface and its features. A boundary survey marks the legal edges of the property. For a loading area near a property line, you usually want both so the layout fits inside your land.
